Supplier & Distributor of

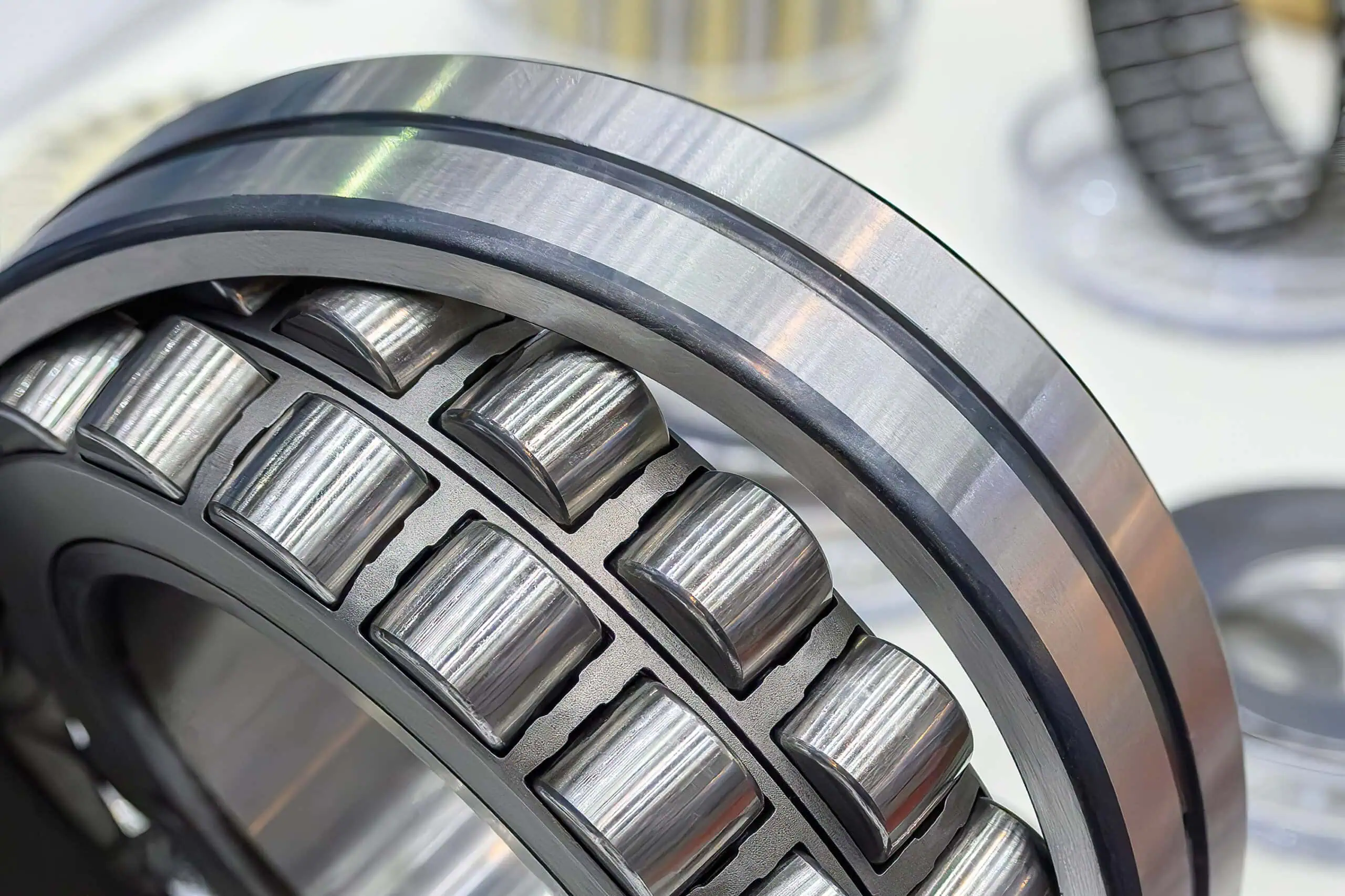

Self-Aligning • 22200-23900 Series • 40 mm – 260 mm Bore Spherical Roller Bearings
We are an established spherical roller bearings supplier with a stock range including double row spherical rollers, sealed units, and brass cage units for improved thermal stability. From wind turbine shafts to quarry conveyors, we have the bearing for your application. Our priority is cutting your downtime with efficient identification and service.
Only a fraction of our inventory is shown above. Contact us for additional sizes, clearances, and seal options.
Featured Manufacturers
Nachi
Nachi spherical roller bearings are designed for heavy loads and misalignment, featuring optimized raceway geometry and high-capacity rollers. Available in C, E, and EX series, these bearings provide long service life and smooth operation in mining, construction, and industrial applications. Advanced heat treatment and cage designs enhance durability under severe conditions. High-capacity 22222 spherical roller bearing line with optimized barrel geometry for cooler running.
FAG
FAG’s spherical roller bearings, including the X-life™ series, deliver higher load ratings, reduced friction, and extended service intervals. With barrel-shaped rollers and robust cage designs, they excel in applications exposed to heavy shock loads and misalignment. FAG spherical roller bearings are trusted in wind turbines, paper mills, and heavy machinery. X-life™ series delivers 20 % longer life and includes split style units for tough installs.
SKF
SKF spherical roller bearings are built for high load capacity and misalignment tolerance. Product families include the Explorer series, known for reduced friction, lower operating temperatures, and extended life. Available with cylindrical or tapered bores, SKF spherical bearings are widely used in mining, construction, and paper industries, providing reliability under demanding conditions. Industry’s widest range of sealed units, cutting grease consumption by up to 80 %.
NTN
NTN’s spherical roller bearings, including the ULTAGE® series, combine high radial and axial load capacity with excellent misalignment tolerance. Designed with optimized roller profiles and cage technology, they offer reduced friction and longer service life. NTN spherical bearings are trusted in steel mills, wind energy, and mining applications requiring maximum durability. ULTAGE® class offers high load spherical roller bearings with up to 45 % higher dynamic rating.
Sample Stock List
| Part Number (Nachi) | Description / Specification |
|---|---|
| 22218EXW33C3 | Spherical roller bearing, straight bore 90×160×40 mm, steel cage, W33 lubrication groove, C3 clearance. |
| 22218EXQW33C3 | Spherical roller, tapered bore 1:12 (suffix K, here “Q”), 90×160×40 mm, W33 groove, C3. |
| 22318EXQW33C3 | Spherical roller, tapered bore, 90×190×64 mm, high-capacity EX design, W33, C3 clearance. |
| 22318EXW33 | Spherical roller, straight bore, 90×190×64 mm, standard clearance (C0) with lubrication groove. |
| 22215EXW33C3 | Spherical roller, straight bore, 75×130×31 mm, W33 groove, C3 (commonly used in pumps and fans). |
| 22215EXK W33 C3 | Spherical roller, tapered bore (K), 75×130×31 mm, W33, C3 clearance (fits on adapter sleeve). |
| 22315EXW33K | Spherical roller, 75×160×55 mm, tapered bore, W33 groove (used for conveyors, etc.). |
| 22205EXW33 | Small spherical roller, 25×52×18 mm, straight bore, W33 (lubrication holes). |
| 22220EXW33C3 | Spherical roller, 100×180×46 mm, straight bore, W33, C3 (commonly in gearboxes). |
| 23024EW33K | Spherical roller (23000 series), 120×180×46 mm, tapered bore, W33 (high load, short fat design). |
| 22318-E1-C3 | Spherical roller bearing, 90×190×64 mm, straight bore, steel cage, C3 clearance. |
| 22318-E1-K-C3 | Spherical roller, 90×190×64 mm, tapered bore (K 1:12), C3 clearance (for adapter sleeve mounting). |
| 22218-E1-C3 | Spherical roller, 90×160×40 mm, straight bore, C3 (popular size for gear drives). |
| 22218-E1-K | Spherical roller, 90×160×40 mm, tapered bore 1:12 (often mounted on H3084 adapter). |
| 22215-E1-C3 | Spherical roller, 75×130×31 mm, straight bore, C3 clearance (FAG E1 design). |
| 22215-E1-K | Spherical roller, 75×130×31 mm, tapered bore, std. clearance. |
| 23220-E1A-M-C3 | Spherical roller (232 series, higher load) 100×180×60.3 mm, M = brass cage, C3 clear. |
| 22330-E1-JPA-T41A | Spherical roller 150×320×108 mm, special vibrating screen design (T41A), JPA cage (steel), used in vibratory applications. |
| 23036-E1A-K-M | Spherical roller (230 series) 180×280×74 mm, tapered bore, brass cage. |
| 24126-E1-C3 | Spherical roller (241 series, wide type) 130×210×80 mm, straight bore, C3 clearance. |
| 22218 EK/C3 | Spherical roller bearing, 90×160×40 mm, tapered bore (1:12), steel cage, C3 clearance, W33 (often implied). |
| 22218 E/C3 | Spherical roller, 90×160×40 mm, straight bore, C3, E design (enhanced capacity, steel cage). |
| 22318 CC/W33 | Spherical roller, 90×190×64 mm, straight bore, CC design (two steel cages), with lubrication groove (W33), std clearance. |
| 22318 CC/C3W33 | Same as above with C3 clearance (common for industrial gearbox output shafts). |
| 22215 EK | Spherical roller, 75×130×31 mm, tapered bore, normal clearance (fits adapter sleeve H315). |
| 22215 E | Spherical roller, 75×130×31 mm, straight bore, steel cage, normal clearance. |
| 23220 CCK/W33 | Spherical roller (232 series) 100×180×60.3 mm, tapered bore, steel cage, with groove & holes. |
| 23024 CCK/W33 | Spherical roller (230 series) 120×180×46 mm, tapered bore, steel cage, W33 lubrication groove. |
| 24126 CC/W33 | Spherical roller (241 series) 130×210×80 mm, straight bore, CC design, W33. |
| 22330 CC/W33 | Spherical roller, 150×320×108 mm, straight bore, CC design, W33 (very high load capacity). |
| 22218BKD1C3 | Spherical roller, 90×160×40 mm, tapered bore (K), lubricating groove (D1), C3 clearance (NTN equivalent to 22218EK/W33 C3). |
| 22218BD1 | Spherical roller, 90×160×40 mm, straight bore, D1 (W33 groove), standard clearance. |
| 22318UAVS2 | Spherical roller, 90×190×64 mm, straight bore, special VS vibrating screen design (optimized clearance and lubrication features). |
| 22215EAD1C3 | Spherical roller, 75×130×31 mm, straight bore, EA design (high capacity), W33 groove, C3. |
| 22315BKD1 | Spherical roller, 75×160×55 mm, tapered bore, W33 groove (NTN bearing for heavy-duty shafts). |
| 23220BD1 | Spherical roller (232 series) 100×180×60.3 mm, straight bore, W33 groove. |
| 23024BD1C3 | Spherical roller (230 series) 120×180×46 mm, straight bore, W33, C3 clearance. |
| 24026CD1 | Spherical roller (240 series) 130×200×69.8 mm, straight bore, W33 groove, standard clearance. |
| 22211KD1 | Spherical roller, 55×100×25 mm, tapered bore, W33 groove (commonly used on SN520 split housings with adapter sleeve). |
Features
Self-aligning bearings tolerate up to 2 ° of shaft mis-alignment—ideal for rough-service gearboxes.
High load spherical roller bearings feature oversized rollers and reinforced cages, boosting dynamic capacity by 25 %.
Sealed designs offer “fit-and-forget” reliability; no relube required for 10 000 h in harsh quarry dust.
Applications
Application
Spherical roller units reduce heat under centrifugal forces in vibrating screen applications by reducing friction.
Barrel geometry spreads load for long life.
Brass cage spherical rollers handle steam-room temperatures.
Split spherical roller bearings cut change-out time by 50 %.
Sealed bearings keep salt spray out, extending overhaul intervals.
No part number? No problem. Our experts are ready to help you identify your part and get you back up and running. We can identify your part with just a few simple measurements.
